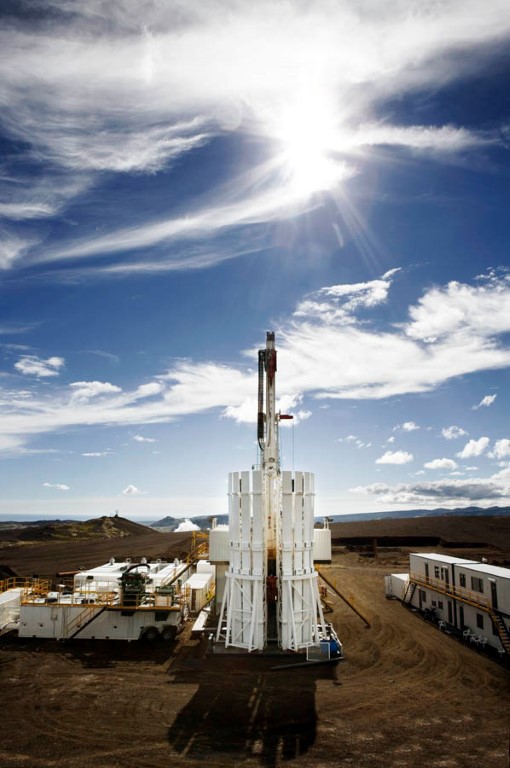

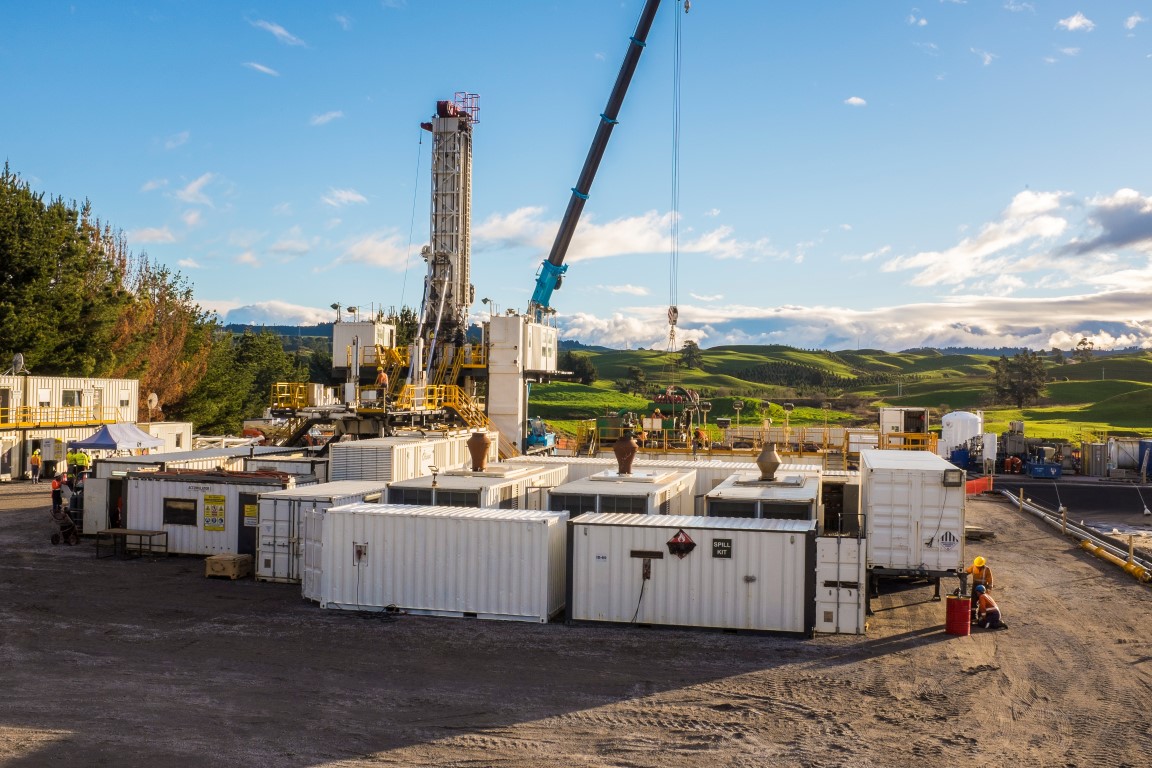

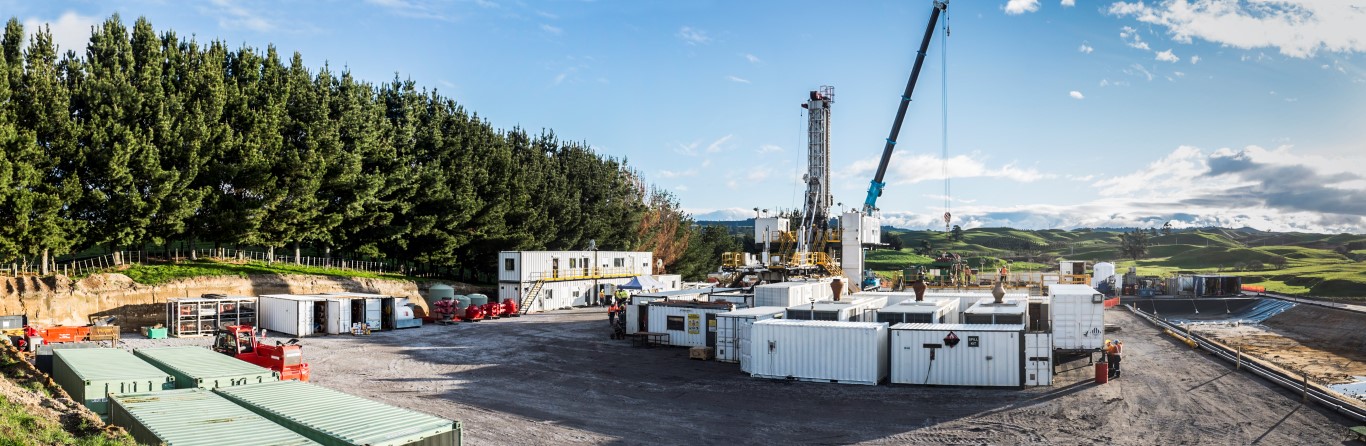

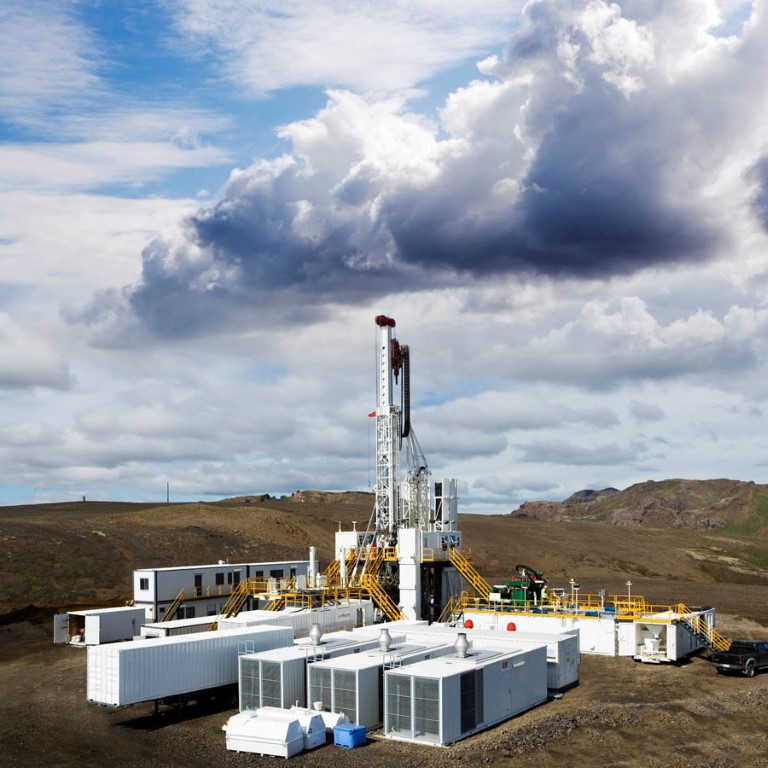

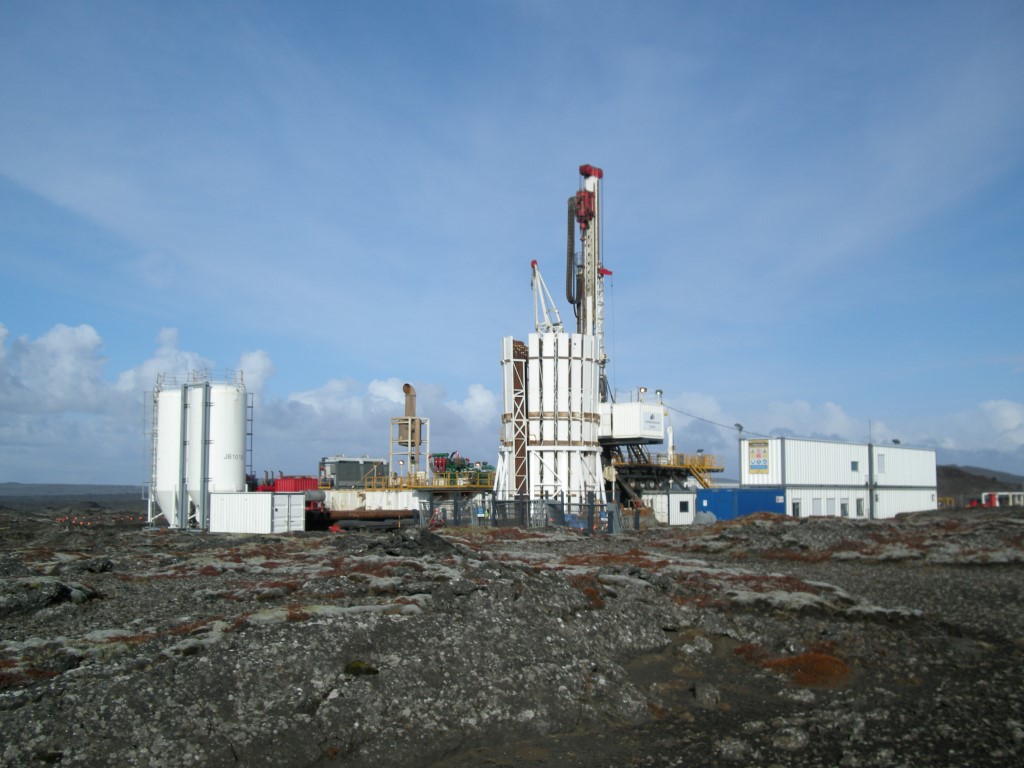

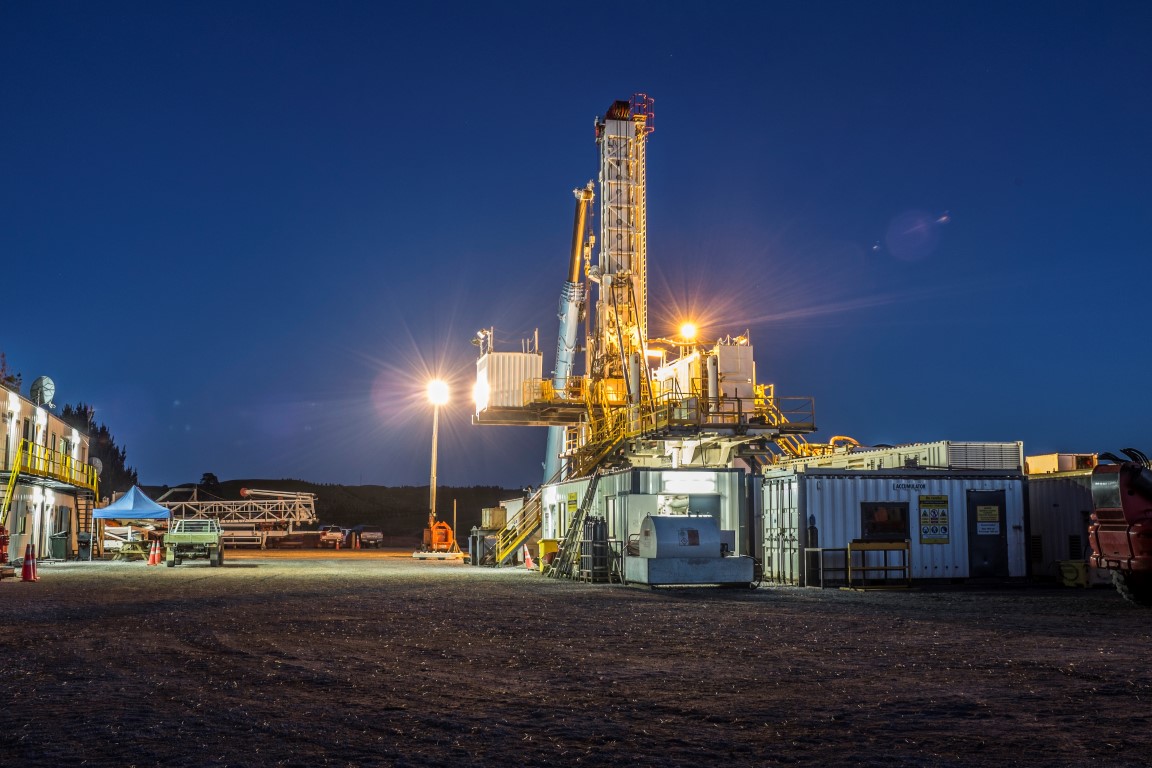

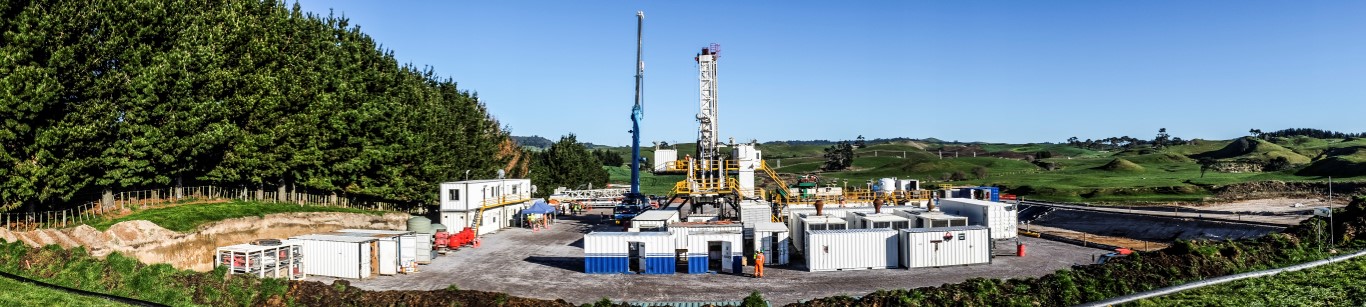

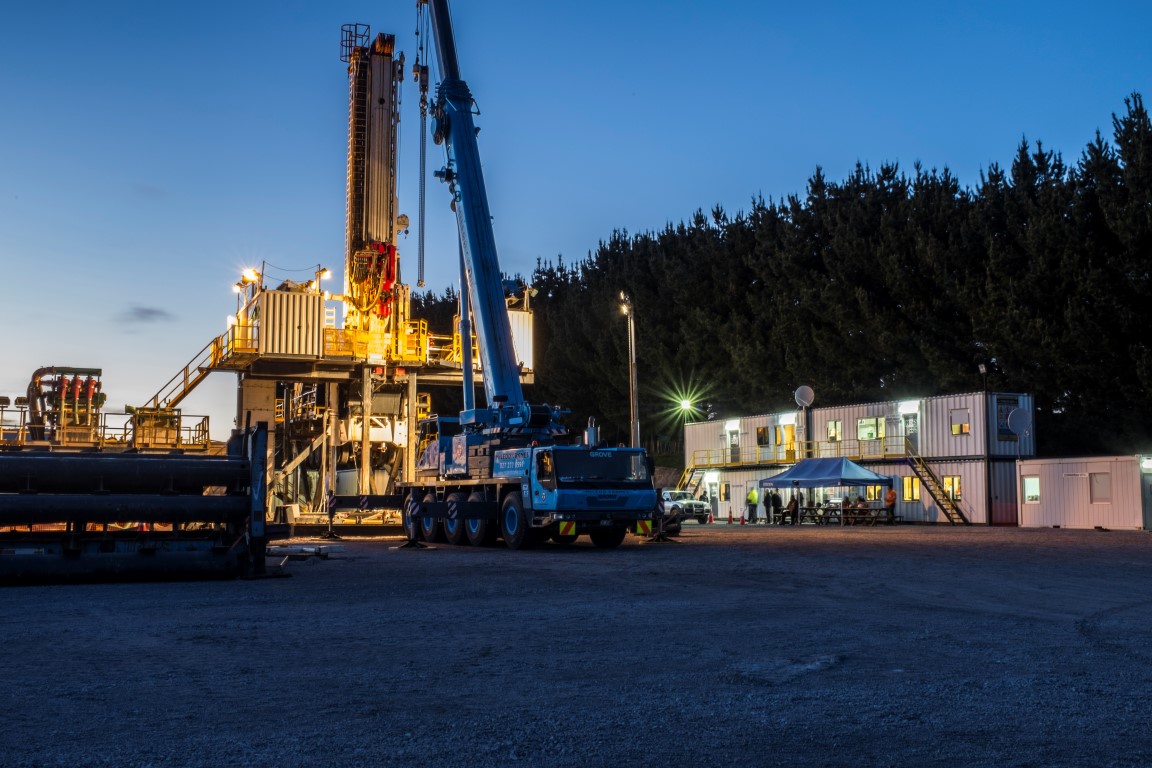

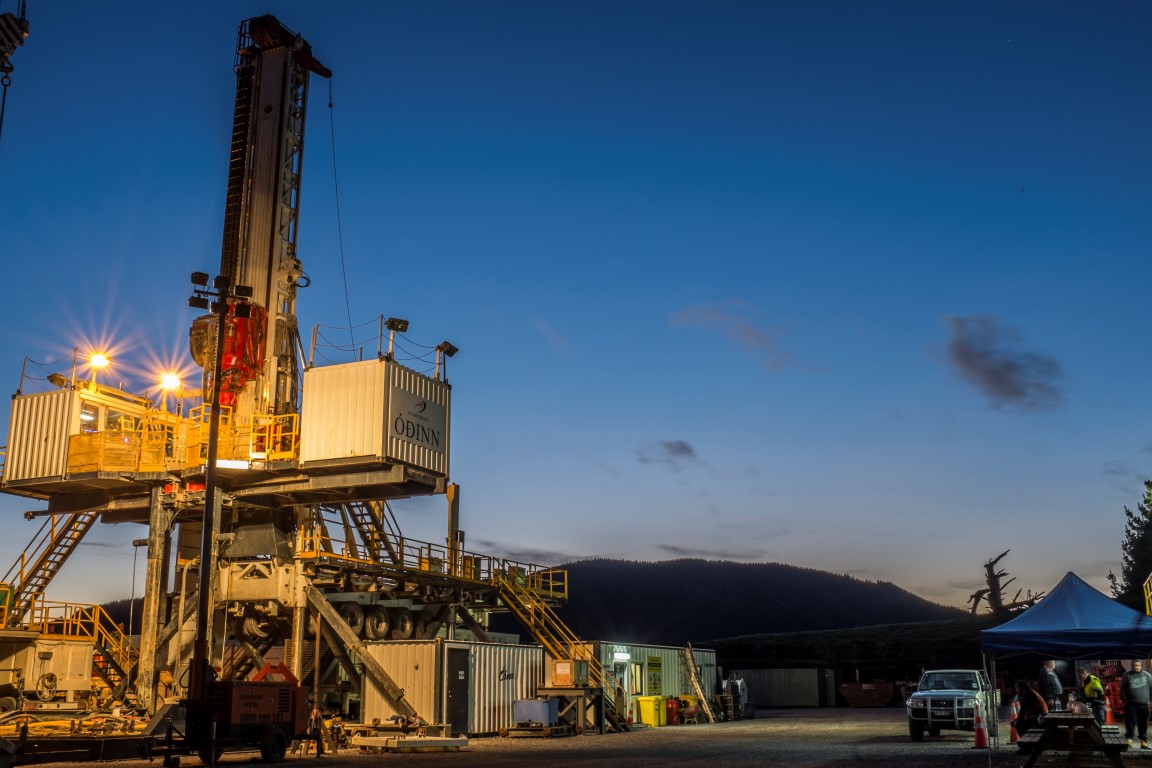

Óðinn Drillmec HH-220

Click here for more

technical details

PRINCIPAL PARTICULARS

Drilling depth theoretical: 4.000 m / 13.000 ft with 3 1/2” DP range 3
Year of construction: 2006

MAST

Type: Drillmec telescopic
Height: Working stroke 16 m
Hookload: 200 metric ton / 441.000 lbs

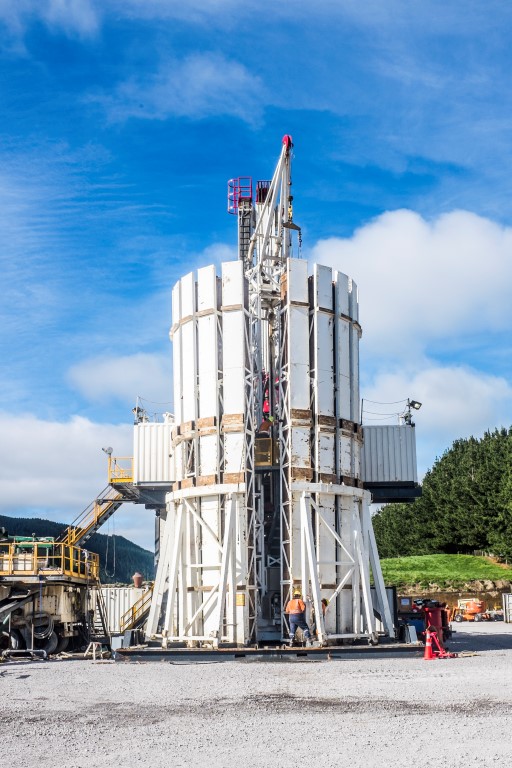

SUBSTRUCTURE

Clear working height: 6,7 m
Rotary table: 27 1/2″, (not for drilling)

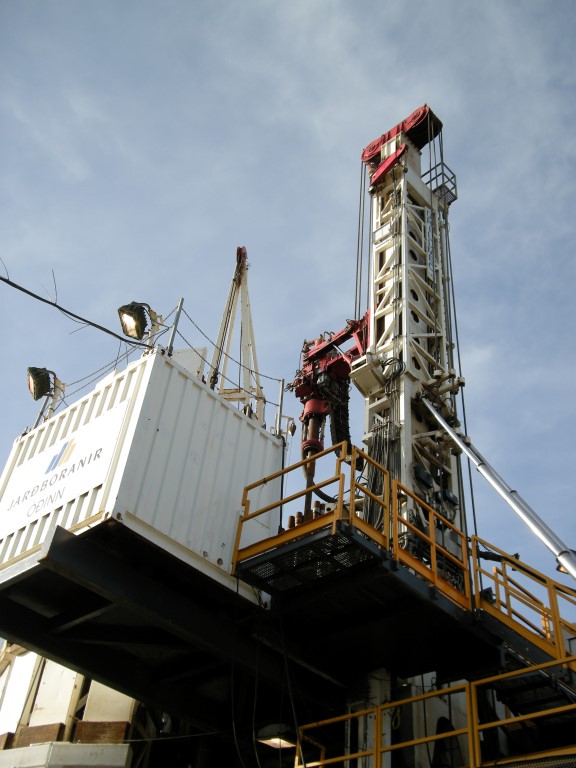

TOP DRIVE

Type: Drillmec
Capacity: 200 metric ton / 441.000 lbs
Torque: 3671 daNm / 26.000 lb.ft
